TMA44 MONO AUDIO CONTROL PANEL (complete pack)

01801-00-01

The TMA44 and TMA45 audio panels work perfectly with TRIG stack products, combining practical functionality and great value. Both panels support IFR and VFR flight and will also operate with a wide selection of existing avionics aircraft.

€1,286.67
5 1
,
5/ 5
VAT included EXPÉDIÉ SOUS 15J
Quantity
Available in 1-2 weeks

This product has a warranty of 2 years.

Data sheet

Type
2-4 mono seats
Certification
TSO Compliance - TSO-C50c, TSO-C35d
Power voltage (DC)
11 to 33 volts DC
Operating temperature
-20°C to +55°C
Weight
1.3 lbs
Dial-ups
Nav 1, Nav 2, ADF, Aux, DME
Not switched - for audio warnings
2
List of shared features
Marker Beacon Indicator with Visual Cues for IFR/ILS Adjustable lighting - photocell and/or via lighting bus Music 'Smooth Fade' function
Frequency response of the microphone
3 dB 350 Hz - 6000 Hz
Music frequency response
3 dB 200 Hz
Helmet impedance
150 to 1,000 Ω
Headphone output - every helmet (no clipping)
45 mW
Speaker output - 14 Volt DC / 28 Volt DC
3 watts / 10 watts
Temperature range - storage
-40°C to +85°C
Physical dimensions (in the bin)
W 6.25" x H 1.3" x D 7.75"

Approximate date of delivery on %MINIMAL_DATE%

Description

Audio panels TRIG allow simple control of all your navigation, communication and entertainment choices - benefiting from TRIG's "Better by Design" philosophy. The result - a logical and high quality interface, easier to use, with features that pilots and passengers really appreciate.

TMA44 - STANDARD PANEL

  • Mono - audio inputs for phone / music
  • Smooth fade function
  • Simple user interface - easy to use
  • Dedicated buttons for ADF and DME functions
  • Marking tag receiver - with flags
  • Supports 2 to 4 seats
  • Great value for fleet operators and flight schools

THE HIGH-VALUE PANEL THAT COVERS ALL IFR/VFR BASES

The TMA44 equips you for navigation and IFR flight, with dial-ups for; Nav 1, Nav 2, ADF, Aux and DME. An illuminated marking tag for ILS approaches adds visual cues to the audio tones of the markers. All appliances have a positive feel, with adjustable panel lighting for an excellent user experience day and night.

The TMA44 has two additional unmuted inputs included for audio alerts, such as stall or rolling train warnings. The option to play music via two custom inputs is enhanced by the TMA44's "soft fade" feature. This automatically adjusts music levels to ensure that vital radio information is always clearly received.

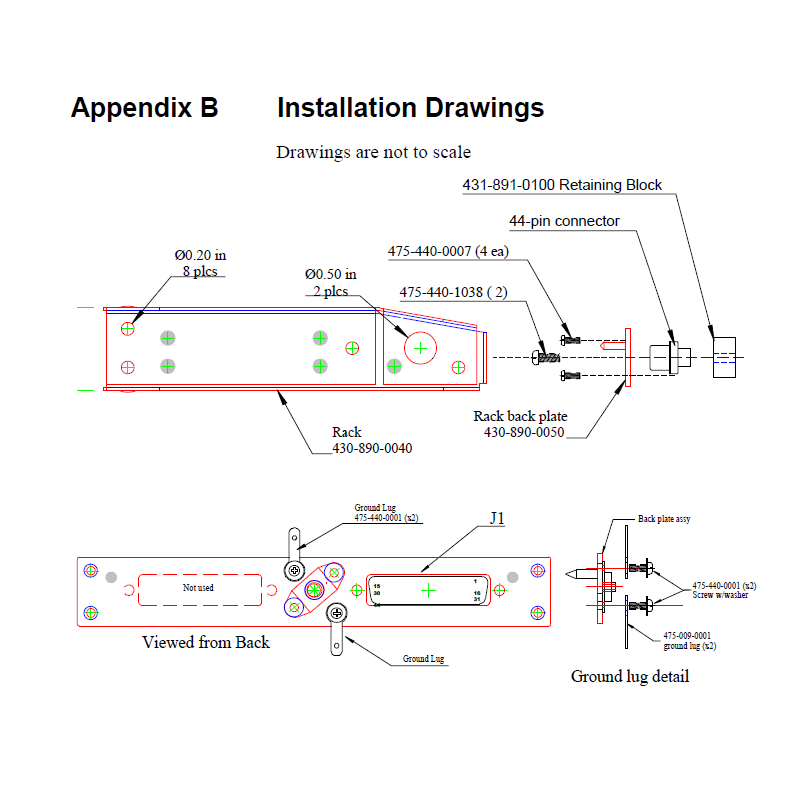

PRODUCT INSTALLATION

The unit deploys an industry-standard 44-pin connector for simple adjustment with older audio panels and is designed to fit into a standard avionics rack. The TMA44 is a popular choice for GA aircraft owners looking to improve their audio system, getting the basic features in a cost-effective package.

QU'Y A-T-IL DANS LA BOITE

  • Tous les produits Trig sont livrés avec une garantie de deux ans, à compter du jour de l'installation
  • Manuel d'installation et manuel d'utilisation
  • Kit d'installation
  • Plateau
  • Formulaire 1 de l'EASA

QUESTIONS FRÉQUEMMENT POSÉES

Pourquoi le TMA44 s'appelle-t-il le panneau audio standard?
Le TMA44 est un panneau mono qui prend en charge 2 à 4 sièges.

Pourquoi le TMA45 s'appelle-t-il le panneau audio supérieur?
Le panneau TMA45 prend en charge 2 à 6 sièges. De plus, ce panneau audio dispose d'une fonction Bluetooth permettant de connecter deux appareils électroniques portables offrant de la musique stéréo et des options de communication.

Le panneau Trig Audio est-il facile à installer?
Le TMA44 déploie un connecteur 44 broches standard de l'industrie permettant un simple ajustement avec des panneaux audio plus anciens. Le TMA45 dispose de deux connecteurs et est une mise à niveau plug and play pour le GMA340. Les deux unités sont conçues pour s'intégrer dans un rack avionique standard.
