Aerocoax - Antenna Patch Lead – Custom Made - VHF radio transponder antenna *Required step

New custom made coax cable configurator. Various connector selection.

  • Connector 1
  • Coax
  • Connector 2
  • Lenght
Next
Your configuration:
Final price (tax incl.)
€14.64
Next
9999

Approximate date of delivery on %MINIMAL_DATE%

Description

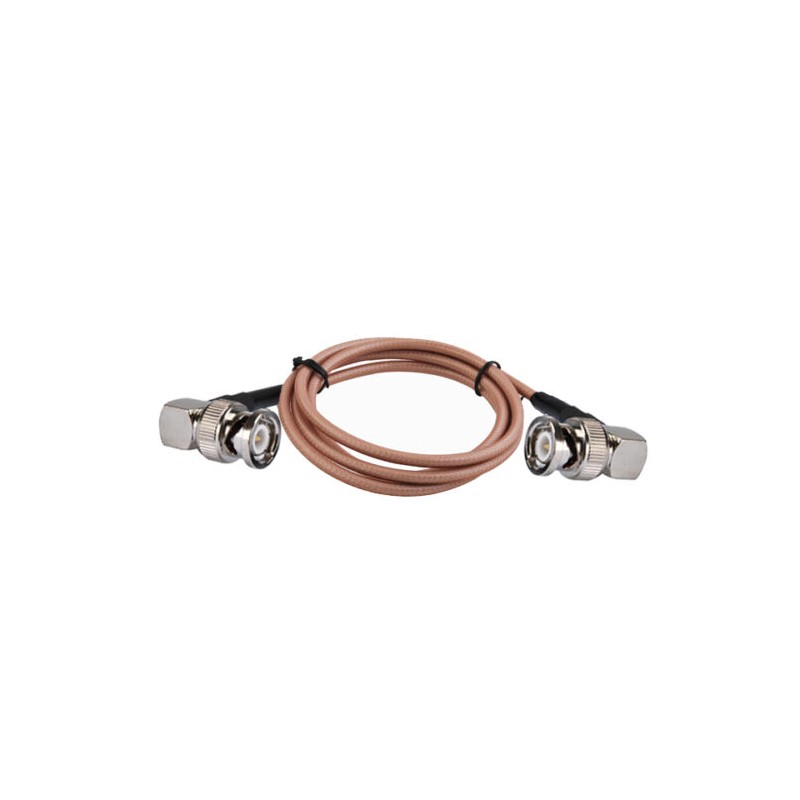

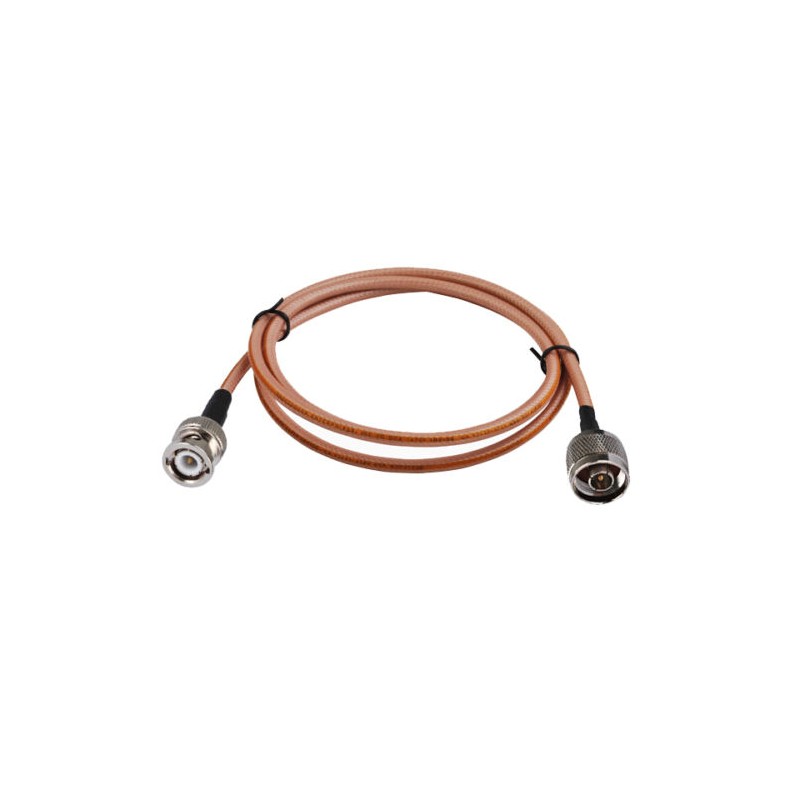

AeroCoax developed by Aerowood is a new range of made-to-measure coaxial cables.

These cables are made on demand in our workshop and at an affordable price.

Simply follow 4 steps to make your assemblies.

The cable is then pre-assembled and delivered ready to use.

Choose your coaxial cable (black or brown color depending on our stock)

RG58A/U : Standard cable for experimental avionics installations. Armored solid conductor, sheath type - PVC.

RG58C/U : Standard cable for experimental avionics installations. Shielded Solid Conductor, Sheath Type - Non-PVC.

RG400 : Standard cable for radio installations. Double shielded stranded conductor. Approved for certified aircraft.

RG142 : Solid double-shielded conductor. Approved for certified aircraft.

Choose input/output connectors

Male BNC : Male BNC termination to coaxial cable crimp on connectors meets MIL-C-39012 cl2 Category B specifications.

Female BNC : Female BNC termination to coaxial cable crimp on connectors meets MIL-C-39012 cl2 Category B specifications.

Male TNC : AMP male TNC crimp connector.

TNC female : TNC female crimp connector.

None : the end of the wire will be without a connector.

Choose the length

Between 0.5 and 10 m in length.

----------------------------------------------

A custom coaxial cable for radio avionics, transponder antenna is an electrical cable that is manufactured to meet the specific requirements of a given application in an avionics system. It is typically used to connect aircraft communication and navigation equipment, such as radio and transponder antennas, to control boxes and display screens.

Avionics coaxial cables are typically made from high quality materials to withstand extreme conditions, such as high temperatures, vibration, mechanical shock, and electromagnetic radiation. Outer skins and connectors are often made of materials with high corrosion resistance to ensure long life in aerospace environments.

Custom coaxial cables for avionics are usually manufactured to precise specifications, such as outer diameter, number of conductors, jacket types, connectors, and electrical characteristics.

It usually includes:

A central conductor that carries the electrical signal. It is usually made of copper or an alloy of copper and aluminum for good electrical conductivity.

A screen that is usually made from a metal sheath that surrounds the center conductor to shield against electromagnetic disturbances.

An outer sheath that protects the cable from external conditions. It is generally made of plastic, such as PVC or TPE, for better resistance to high temperatures and mechanical shocks.

It is important to note that coaxial cables for avionics must meet strict safety standards established by aviation certification authorities to ensure the reliability and safety of aircraft equipment.

Nb In accordance with article L121.20.12 of the Consumer Code concerning custom-made items, this item will not be taken back or exchanged.
